NPS 2 to 24 / DN 50 to 600
For NPS 2 to 16: 150 psi / DN 50 to 400: 10 bar
For NPS 18 to 24: 90 psi / DN 450 to 600: 6.2 bar (Higher pressure options available with specific materials)
Two-Piece Bolted: Wafer
|
Specification |
Details |
|
Size Range |
Available in NPS 2 to 24 / DN 50 to 600 |
|
Body Materials |
Options include Ductile Iron, Carbon Steel, Stainless Steel |
|
Maximum Operating Pressure |
For NPS 2 to 16: 150 psi / DN 50 to 400: 10 bar |
|
For NPS 18 to 24: 90 psi / DN 450 to 600: 6.2 bar |
|
|
Higher pressures can be accommodated with certain materials |
|
|
Stem Materials |
Typically 304 Stainless Steel |
|
Body Design |
Two-piece bolted wafer style |
|
Gate Materials |
Choices of 304, 316, 317 Stainless Steel, SAF 2507, SAF 2205, 17-4PH, Hastelloy® C, Monel® |
|
Seat Temperature Range |
Natural Rubber: -60° to 165°F (-51° to 74°C) |
|
EPDM: -65° to 248°F (-54° to 120°C) |
|
|
Design Standard |
Manufacturer's Standard |
|
Wiper Materials |
EPDM |
|
Testing Standards |
Manufacturer's Standard |
|
Certifications |
ATEX, CRN, PED, PE(S)R, TR CU, UA TR |
|
Face to Face |
Manufacturer's Standard |
|
Actuator Options |
Handwheel, Bevel Gear, Pneumatic, Hydraulic, Electric |
|
Applications |
Suitable for slurry handling |

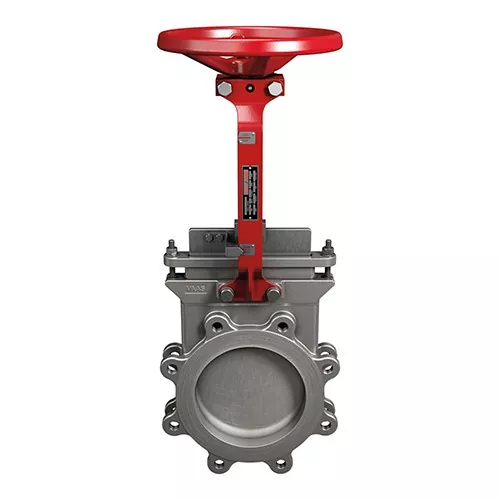

The Knife Gate Valve Series 768 is an engineered solution for challenging slurry handling applications. Its compact wafer face-to-face design makes it an efficient, space-saving option for various slurry processes, featuring Bray SlurryShield Technology. This valve can replace traditional knife gate valves directly, offering enhanced performance.
The design incorporates twin elastomer sleeves and a self-cleaning gate. Built to withstand 1.1 times the valve’s pressure rating, the gate ensures reliable operation under high-pressure conditions. By utilizing higher-yield materials such as Duplex 2205 or 17-4PH stainless steel, the valve can achieve even higher pressure ratings. The elastomer sleeves can be replaced on-site, minimizing downtime and extending the valve's service life.
Certified with CRN and PED Category I Module A for Group 2 liquids, this valve meets industry standards and regulatory requirements.
The Knife Gate Valve Series 768 guarantees superior performance in heavy-duty slurry applications such as mining, HPAL/POX, and chemical processing, making it a reliable choice for a range of industries.
● Protective Stem Cover: Standard feature to increase cycle life in harsh environments.
● Encapsulated J-Ring: Provides sleeve reinforcement and memory assist, ensuring zero leakage performance in both directions.
● Self-Cleaning Gate: In the open position, the energized sleeves protect all metal parts from exposure to the process media.
● Robust Gate Design: Specifically engineered for slurry applications, available in various corrosion-resistant alloys.
● Full-Port Design: Ensures an unobstructed flow path, improving sleeve life and reducing pressure drop across the valve.
● Two-Piece Bolted Body: Facilitates easy maintenance and offers compatibility with a variety of flange standards.
● Optional Bottom Flush Plate: Includes tapped ports for safe media discharge and a simple flush water connection.
