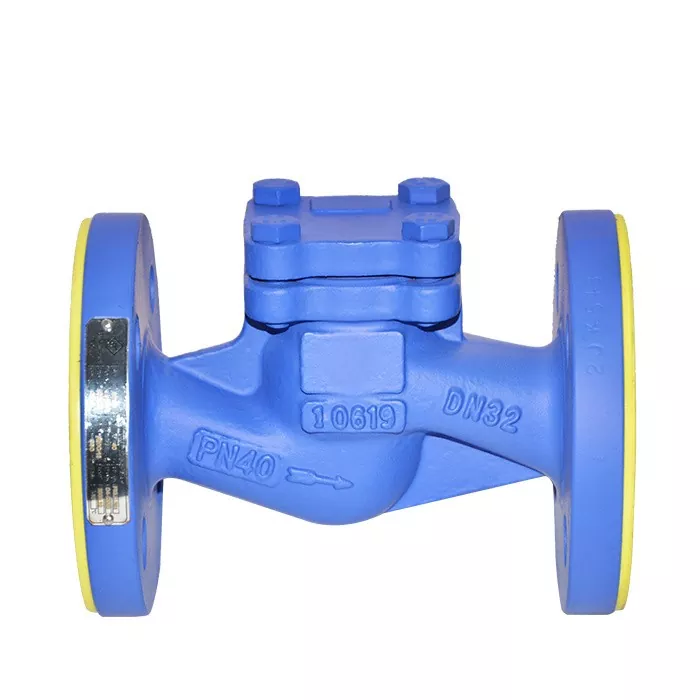

Lift Type Ball Check Valve

The Lift Type Ball Check Valve is designed to prevent reverse flow in a wide range of fluid systems, ensuring reliable performance and minimal pressure loss. Its vertical lift mechanism offers efficient operation in both horizontal and vertical pipelines. This valve is widely used in water treatment, oil and gas, and chemical industries, where backflow prevention is critical.

The Lift-Type Ball Check Valve operates based on a simple yet effective vertical lift mechanism. The ball is lifted by the fluid pressure and drops back into place when the flow ceases or reverses, providing a tight seal against backflow. This design minimizes the chance of water hammer and offers a longer service life compared to conventional check valves. The valve body is typically made from high-quality materials like stainless steel or cast iron to handle a variety of fluid mediums, including corrosive substances. These valves are suitable for high-pressure systems, making them ideal for industrial applications requiring reliable flow control.

Lift Type Ball Check Valve

Product Features:

Lift Type Ball Check Valve

Vertical Lift Mechanism: Ensures smooth operation in both horizontal and vertical piping configurations.

High Durability: Constructed from corrosion-resistant materials like stainless steel or cast iron for extended service life.

Low Pressure Drop: The ball lifts with minimal fluid resistance, ensuring efficient flow with reduced pressure loss.

Prevention of Water Hammer: The design minimizes the risk of water hammer, protecting the pipeline system from potential damage.

Versatility: Can be used in a wide range of applications, including water treatment, oil and gas, and chemical processing systems.

Easy Maintenance: Simple design with minimal moving parts allows for easy inspection and maintenance.

precise cutting through fluid.

The valve seal is composed of two durable, highly resistant EPDM sleeves in constant contact, ensuring full bore flow.

Damaged sleeves can be easily replaced.

With no seat cavities, material build-up is prevented, and there is no fluid contact with metallic parts.

The design is bi-directional.

Product Parameter (Specification)

Parameter

Specification

Valve Type

Lift-Type Ball Check Valve

Size Range

DN50-DN600

Pressure Rating

PN10,PN16,PN25

Body Material

Stainless Steel,Cast Iron,Ductile Iron

Ball Material

Rubber Coated Steel,Stainless Steel

End Connection

Flanged,Threaded,Wafer

Temperature Range

-20℃ to 200℃

Flow Direction

Unidrectional

Suitable Mediums

Water,Oil,Gas,Chemicals,Wastewater

Standards

API 6D,DIN,EN

Certifications

ISO 9001,CE

Why Choose WIVO VALVES' Lift Type Ball Check Valve?

High-Quality Construction: Lift-Type Ball Check Valves are built with robust materials to withstand harsh environments and provide reliable performance in industrial systems.

Efficient Flow Control: The vertical lift design ensures minimal flow restriction and low pressure drop, which is essential for maintaining system efficiency.

Versatile Applications: Suitable for various industrial applications, including water distribution, oil and gas, and chemical processing.

Easy Installation and Maintenance: With simple construction and fewer moving parts, the valve is easy to install and maintain, reducing downtime and operational costs.

Certifications for Quality: Our valves are certified to meet international standards such as ISO 9001 and CE, ensuring reliability and compliance with global safety regulations

Customer Concerns:

Pressure Loss: Customers may worry about significant pressure drops in the system, but the Lift-Type Ball Check Valve is designed to minimize this issue through efficient ball movement.

Corrosion Resistance: The materials used, such as stainless steel and rubber-coated components, provide excellent resistance to corrosion, extending the valve’s lifespan even in harsh environments.

Water Hammer: The design of the Lift-Type Ball Check Valve significantly reduces the risk of water hammer, protecting pipelines from damage.

Maintenance Costs: With fewer moving parts and a straightforward design, the Lift-Type Ball Check Valve requires minimal maintenance, keeping operational costs low.

Compatibility with Different Fluids: The valve is compatible with a wide range of fluids, from water to chemicals, offering versatile use across industries.

This comprehensive description highlights the features, benefits, and pr

Certifications and Global Reach

Lift Type Ball Check Valve

At WIVO VALVES, we prioritize quality assurance and regulatory compliance. Our Lift Type Ball Check Valve

are rigorously tested and certified by prominent industry bodies to meet international safety and quality standards. We have earned a reputation for reliability and excellence, exporting our valves to clients across the globe. Our extensive certifications reflect our unwavering commitment to providing products that deliver outstanding performance and safety. With a strong global presence, WIVO VALVES is a trusted supplier for many leading brands and industries. Partnering with us ensures access to high-quality DIN Globe Valves backed by comprehensive support and service.
