MODEL C For Dual Plates Check Valves

WIVO VALVES stands as a leading innovator among  MODEL C For Dual Plates Check Valves , dedicated to delivering high-quality and cost-effective solutions tailored to meet diverse industrial requirements. Our extensive range of MODEL C For Dual Plates Check Valves scombines advanced technology with superior materials, ensuring durability and reliability in even the most demanding environments. With a strong focus on customer satisfaction, competitive wholesale prices, and exceptional service, WIVO VALVES is your trusted partner for sourcing premium dual plates check valves.

Product Introduction

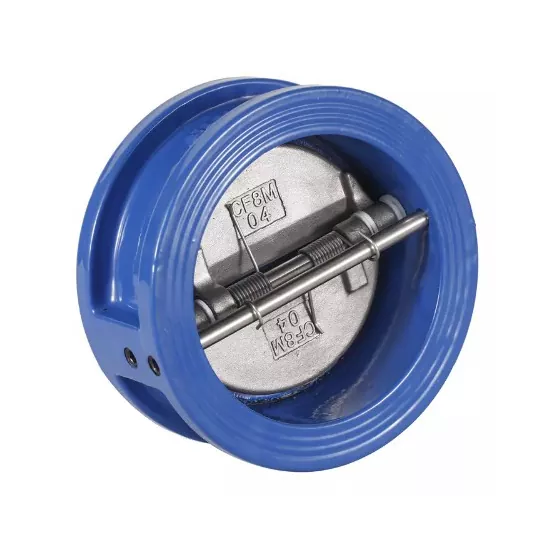

This dual plate check valve is built with premium materials to ensure reliable performance across various applications. The body and plates are crafted from high-strength materials, including Ductile iron GGG-40, ASTM A216 Gr WCB, ASTM A351 CF8M, and ASTM A890 5A, providing excellent durability and resistance to wear.

The valve features shafts made from AISI-304 or AISI-316, offering robust mechanical properties and corrosion resistance. The springs are available in AISI-302, AISI-316, or Inconel 625, ensuring long-lasting flexibility and resilience under demanding conditions.

The seat options include EPDM, BUNA-N, Heat EPDM, and Viton, each chosen for their ability to maintain a tight seal and resist chemical degradation.

Designed to maintain watertight integrity, the valve requires a minimum back pressure of 0.5 bar. The standard version is available in a wafer configuration, with flanged options offered upon request for greater flexibility in installation.

For specialized applications, such as desalination plants, the valve can be customized with highly resistant materials. Options include a body and plates made from Duplex DIN 14469 A890 5A, a shaft in ASTM A182 F55, springs in Inconel 625, and an EPDM liner. These enhancements make the valve exceptionally durable in aggressive environments, ensuring reliable operation in even the most challenging conditions.

Key Specifications:

● Body: Ductile iron GGG-40, ASTM A216 Gr WCB, ASTM A351 CF8M, ASTM A890 5A.

● Plates: Ductile iron GGG-40, ASTM A216 Gr WCB, ASTM A351 CF8M, ASTM A890 5A.

● Shafts: AISI-304, AISI-316.

● Springs: AISI-302, AISI-316, Inconel 625.

● Seat: EPDM, BUNA-N, Heat EPDM, Viton.

Minimum back pressure to ensure watertightness is 0.5 bar. Standard wafer version available, with flanged options upon request.

For specialized applications like desalination plants, versions with highly resistant materials are available (e.g., Body and plates in Duplex DIN 14469 A890 5A, shaft in ASTM A182 F55, springs in Inconel 625, and Liner in EPDM).

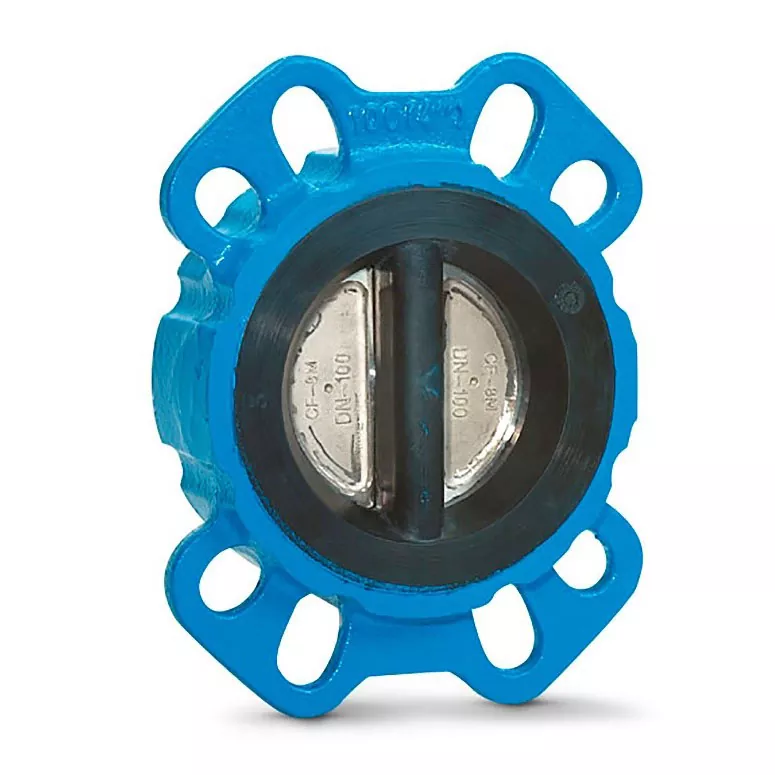

MODEL C:

● Short face to face dimension according to ISO 5752, series 16, and DIN3202 K3.

● DN40 to DN1200.

● Installation between flanges PN10, PN16, PN25, PN40, or ANSI-150.

● Maximum working pressure up to 40 bar, depending on materials.

● Available in ductile iron and welded steel with epoxy powder coating.
