A globe valve is one of the most widely used and versatile types of valves in industrial, commercial, and residential applications. Named after its spherical body shape, the globe valve is designed to regulate, start, or stop the flow of liquids or gases in a pipeline. Its primary function is to offer precise control over flow rate, making it a popular choice for throttling applications where flow control accuracy is crucial.
A globe valve is a type of linear motion valve designed to regulate the flow of a medium through a pipeline. It consists of a movable plug (also called a disc or valve head) and a stationary ring seat within a generally spherical body. By turning the handwheel or actuator, the plug is raised or lowered onto the valve seat to control the flow of the medium.
The defining characteristic of a globe valve is its internal structure, which allows it to control flow with greater precision compared to other types of valves, such as gate or ball valves. The seat and plug arrangement gives globe valves their superior throttling ability, making them well-suited for applications requiring fine flow control.
Key Components of a Globe Valve:
1. Body: The main part of the valve, usually globe-shaped, where the fluid passes through.
2. Bonnet: A cover that houses the moving parts, including the stem and handwheel.
3. Stem: A shaft that connects the handwheel or actuator to the plug, controlling its movement.
4. Disc (Plug): The moving part that controls the flow by seating into or lifting off the valve seat.
5. Seat: The surface where the disc sits to shut off flow.
6. Handwheel or Actuator: The device used to operate the valve manually or automatically.
The working principle of a globe valve is relatively simple. When the handwheel or actuator is turned, the stem moves the plug (disc) up or down. When the plug is lowered, it comes into contact with the seat, blocking the flow. When the plug is lifted, a gap is created between the plug and seat, allowing the fluid or gas to pass through.
Step-by-Step Operation:
1. Closing the Valve: Turning the handwheel in one direction lowers the plug onto the valve seat, closing off the flow.
2. Opening the Valve: Turning the handwheel in the opposite direction raises the plug from the seat, allowing fluid to flow through the gap.
3. Throttling: By adjusting the position of the plug, the globe valve can precisely regulate the flow rate, making it ideal for throttling applications.
The linear motion of the stem and the design of the plug and seat allow for more precise flow regulation than other valve types, such as gate valves, which are more suited for on/off applications rather than throttling.
Due to its design and ability to regulate flow, globe valves are used in a variety of applications where controlling the flow rate or pressure is important. Some of the most common applications of globe valves include:
1. Flow Control in Industrial Processes
In industries like oil and gas, power generation, chemical processing, and water treatment, globe valves are often used to control the flow of fluids and gases. These valves offer precise throttling capabilities, allowing operators to regulate flow rates with high accuracy. This is particularly important in processes where maintaining specific flow conditions is critical for safety or product quality.
2. Steam Applications
Globe valves are commonly used in steam applications due to their ability to handle high temperatures and pressures. They are effective at controlling the flow of steam in heating, cooling, and power generation systems. Their robust design ensures reliable performance even in high-pressure environments, such as in boiler systems and steam pipelines.
3. Cooling Water Systems
In cooling water systems, globe valves help regulate the flow of water to cool machinery or equipment. This is essential for preventing overheating and ensuring that systems operate at optimal temperatures. The precise control offered by globe valves makes them an ideal choice for these applications, where maintaining consistent water flow is crucial.
4. Fuel Oil Systems
In fuel oil systems, globe valves are often used to control the flow of fuel oil to burners or engines. Their throttling capability ensures that the right amount of fuel is delivered, optimizing combustion and efficiency in boilers or industrial burners.
5. HVAC Systems
Heating, ventilation, and air conditioning (HVAC) systems rely on globe valves for controlling the flow of air, water, and other fluids. In HVAC applications, globe valves are used to adjust the flow rate in cooling and heating circuits, providing fine control over temperature and climate conditions.
6. Pressure Control in Pipelines
Globe valves are also used to manage pressure in pipelines by controlling the flow rate of the medium passing through. This is especially important in systems where fluctuating pressures could damage equipment or disrupt processes. Globe valves offer operators the ability to modulate flow rates and pressures, ensuring stable and safe operation.
7. Water Supply and Distribution
In water supply systems, globe valves are often used to regulate the flow of water in distribution networks. Their ability to provide accurate control over water flow makes them useful in municipal water systems, irrigation systems, and plumbing applications. They ensure that water flow is distributed evenly and at the correct pressure throughout the system.
8. Chemical Processing
In chemical processing plants, globe valves are used to regulate the flow of corrosive or hazardous fluids. The materials used in constructing globe valves can be customized to withstand aggressive chemicals, making them suitable for handling sensitive and potentially dangerous substances.
There are several types of globe valves designed to meet the needs of different applications:
1. T-Type Globe Valve
This is the most common design, with a horizontal seat that offers low resistance to flow. It is typically used in applications where pressure drop is not a major concern.
2. Angle Globe Valve
In an angle globe valve, the inlet and outlet are positioned at 90 degrees to each other. This design allows for better flow characteristics in certain systems, such as pipelines where changes in direction are required.

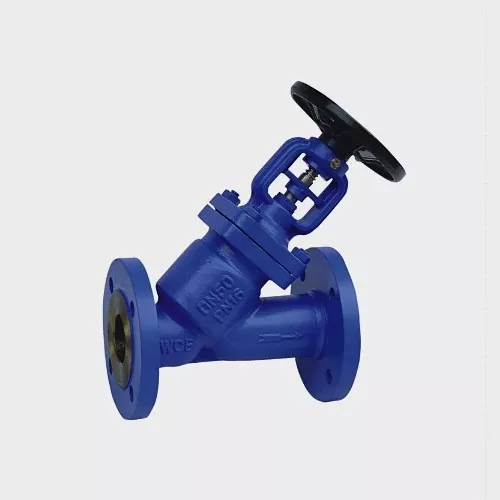

3. Y-Type Globe Valve
The Y-type globe valve has a diagonal seat and stem design, which reduces flow resistance and pressure drop. This type is used in applications where minimizing pressure loss is important.
4. Pressure-Sealed Globe Valve
These globe valves are designed for high-pressure applications, such as in steam systems or high-temperature environments. They feature a pressure-sealed bonnet that enhances sealing performance at high pressures.
Globe valves offer several advantages, making them a preferred choice in many industrial and commercial settings:
1. Precise Flow Control: Globe valves excel at providing accurate flow regulation, making them ideal for throttling applications.
2. Easy Maintenance: The design of a globe valve allows for relatively easy maintenance, as the seat and plug can be accessed without removing the entire valve from the pipeline.
3. Durable and Robust: Globe valves are built to withstand high pressures and temperatures, making them reliable in demanding applications.
4. Positive Shut-off Capability: When fully closed, globe valves provide a tight seal, preventing leaks and ensuring that the flow is completely stopped.
While globe valves offer many advantages, they also have a few limitations:
1. Higher Pressure Drop: Due to the flow path design, globe valves tend to create more pressure drop compared to other valve types like gate or ball valves.
2. Slower Operation: Globe valves require more turns of the handwheel to open or close fully, making them slower to operate than some other valves.
3. Not Ideal for Full Flow Applications: While globe valves are excellent for throttling, they may not be the best choice when full, unobstructed flow is required.
Globe valves are essential components in many industrial, commercial, and residential systems where precise flow control is required. Their ability to throttle flow accurately, handle high pressures and temperatures, and provide reliable sealing makes them indispensable in a wide range of applications, from steam systems and cooling water systems to fuel oil systems and chemical processing. Despite some drawbacks, such as higher pressure drop and slower operation, the versatility and performance of globe valves continue to make them a popular choice in numerous industries.
