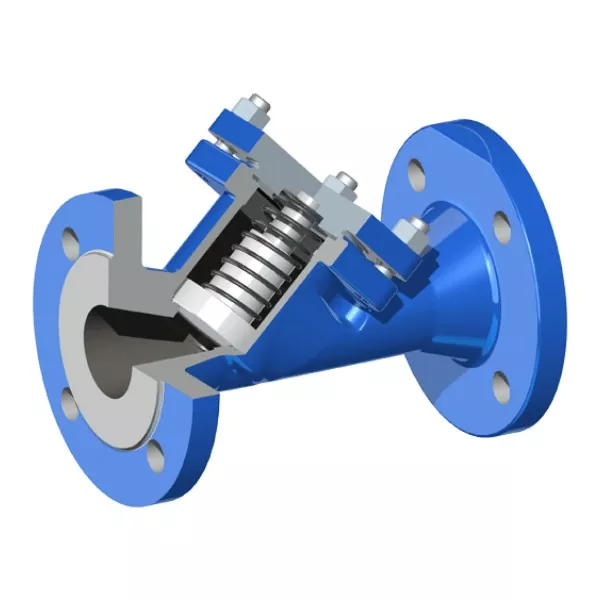

The PN40 Stainless Steel ARI CHECKO-V Y-Pattern Check Valve is engineered to provide reliable backflow prevention in high-pressure environments. With its Y-pattern body and metallic sealing, this valve guarantees long-lasting durability and efficient operation. Made from stainless steel (1.4408), it is designed to handle temperatures up to 400°C, making it ideal for challenging industrial applications.
Featuring flanged connections (PN40), the valve is available in sizes ranging from DN15 to DN300 (½” to 12”), providing versatile options for different pipeline configurations.
|
Pos. |
Sp.p. |
Description |

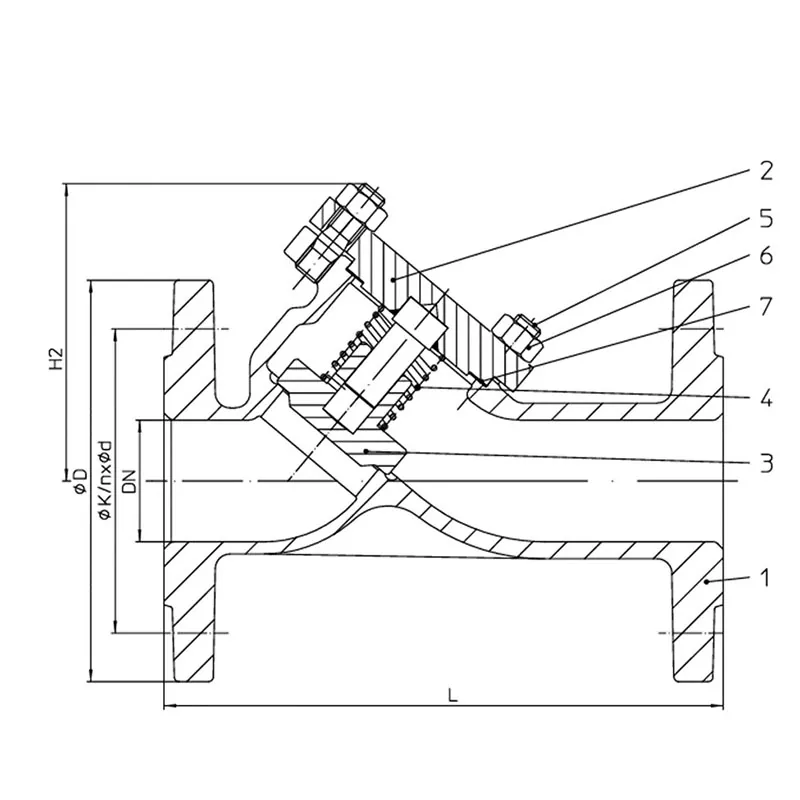

Material (Fig. 52./54./55.039) |
|
1 |
|
Body |
GX5CrNiMo19-11-2, 1.4408 |
|
2 |
|
Cover |
X6CrNiMoTi17-12-2, 1.4571 |
|
3 |
x |
Plug |
X6CrNiMoTi17-12-2, 1.4571 |
|
4 |
|
Spring |
X10CrNi18-8, 1.4310 |
|
5 |
|
Stud |
A4-70 |
|
6 |
|
Hexagon nut |
A4 |
|
7 |
x |
Gasket |
Pure graphite (CrNi laminated with graphite) |
|
|
|
Spare parts |
|
|
DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
|
Dimension (L) (mm) |
130 |
150 |
160 |
180 |
200 |
230 |
290 |
310 |
350 |
400 |
480 |
600 |
|
Dimensions |
|
|
|
|
|
|
|
|
|
|
|
|
|
H2 (mm) |
75 |
75 |
90 |
90 |
110 |
110 |
135 |
160 |
200 |
245 |
300 |
390 |
|
Kvs-Value (m³/h) |
6.7 |
8.5 |
14.9 |
18.8 |
33 |
50.9 |
78.5 |
124 |
181 |
302 |
450 |
791 |
|
Zeta-Value |
-- |
1.8 |
3.5 |
2.8 |
4.7 |
3.8 |
3.9 |
4.6 |
4.3 |
4.9 |
4.3 |
4.1 |
|
Weights |
|
|
|
|
|
|
|
|
|
|
|
|
|
52.039 (kg) |
3.1 |
3.8 |
5 |
7 |
8.4 |
11 |
15.5 |
22 |
29 |
42 |
65 |
119 |
|
54.039 (kg) |
3.1 |
3.8 |
5 |
7 |
8.4 |
11 |
15.5 |
22 |
31 |
45 |
68 |
125 |
|
55.039 (kg) |
3.1 |
3.8 |
5 |
7 |
8.4 |
11 |
15.5 |
22 |
31 |
45 |
68 |
135 |
