1/4" to 4" (8mm to 100mm)
-50°F to 450°F (-46°C to 232°C)
● For sizes 1/2" to 2": 1000 psi CWP (8mm - 50mm, 69 Bar)
● For sizes 2 1/2" to 4": 800 psi CWP (65mm - 100mm, 55 Bar)

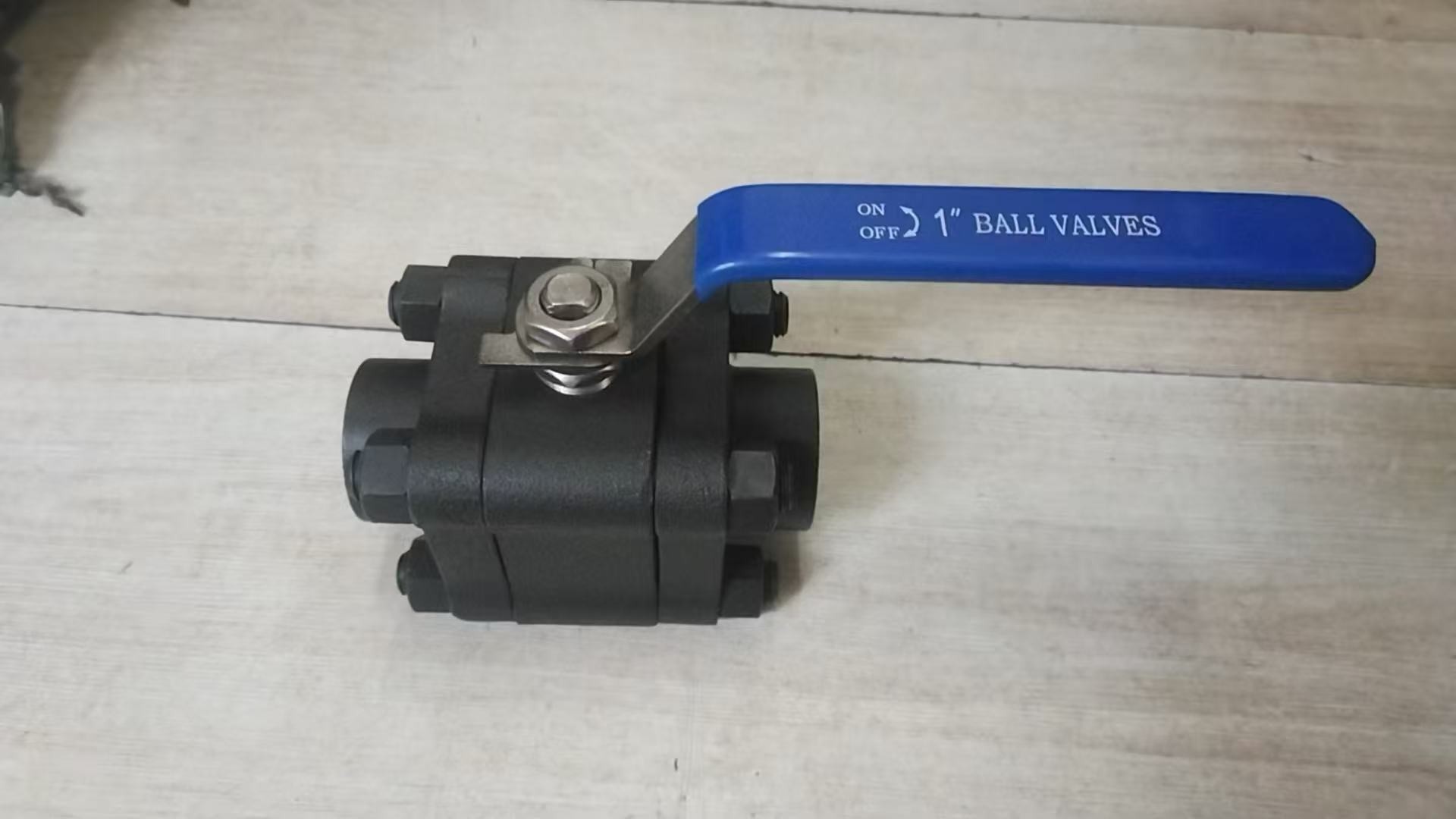

3-Piece Ball Valve
316
● For sizes 1/2" to 2": 1000 psi CWP (8mm - 50mm, 69 Bar)
● For sizes 2 1/2" to 4": 800 psi CWP (65mm - 100mm, 55 Bar)
-50°F to 450°F (-46°C to 232°C)
RPTFE
316
Stainless Steel
Carbon Steel
ASME B16.34
Process, OEM Equipment
● Threaded (ASME B1.20.1 NPT)
● Socket Weld (ASME B16.11)
MSS-SP 72
Manufacturer’s standard (refer to catalog)
Three Piece
Full Port
API 598
1/4" to 4" (8mm to 100mm)

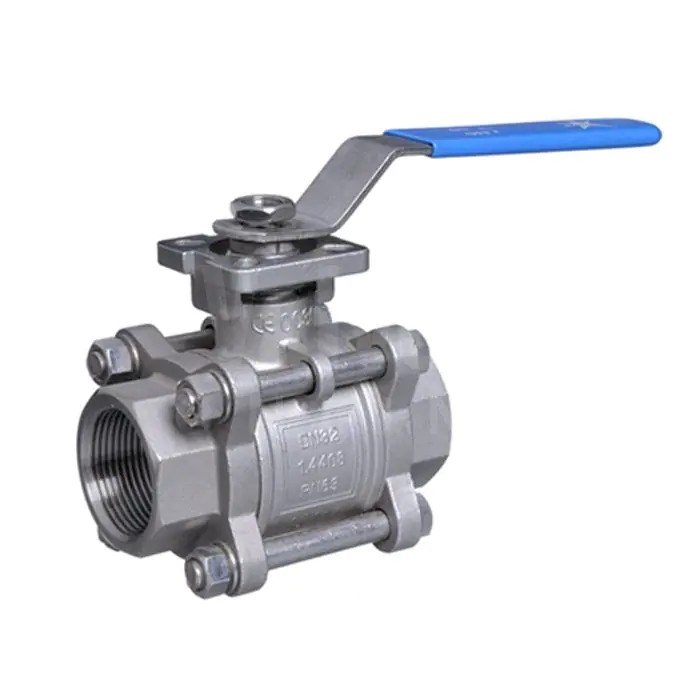

TheWivo Series 256/240 full-port, three-piece, quarter-turn ball valve is designed to offer all the advantages of a three-piece valve at a cost-effective price. This includes a robust internal-entry, blowout-proof stem and adjustable, live-load packing that ensures zero leakage, reduced torque, and a longer service life.
These valves are available in both investment-cast CF8M (316L) Stainless Steel and WCB Carbon Steel. TheSeries 256/240 valves feature a swing-out center section, allowing for easy maintenance in-line. All body castings are marked with a foundry heat number to guarantee full traceability, providing confidence in quality and performance.
For manual operation, these valves come equipped with stainless steel safety trigger-lock handles and travel stops that restrict handle movement to 90°. The integrated ISO 5211 mounting pad ensures precise alignment and easy installation of actuators, gear operators, and other actuation and control components.
With an industry-leading warranty and a strong reputation for dependability,Wivo Series 256/240 three-piece ball valves are the ideal choice for a wide range of industrial applications.
